Table 29. INTERRUPT STATUS REGISTER 2 (0X42)
Bit Mnemonic Description
7 D2 1 indicates an open or short on
D2+/D2 ? inputs.
6 D1 1 indicates an open or short on
D1+/D1 ? inputs.
5 F4P 1 indicates Fan 4 has dropped below
minimum speed. Alternatively, indicates
that the THERM limit ha s been
exceeded, if the THERM function is
used. Alternatively, indicates the status
of GPIO6.
4 FAN3 1 indicates that Fan 3 has dropped
below minimum speed.
3 FAN2 1 indicates that Fan 2 has dropped
below minimum speed.
2 FAN1 1 indicates that Fan 1 has dropped
below minimum speed.
1 OVT 1 indicates that a THERM
overtemperature limit has been
exceeded.
Note that:
? The SMBALERT output remains low for the entire
duration that a reading is out-of-limit and until the
status register has been read. This has implications on
how software handles the interrupt.
? THERM overtemperature events are not sticky . They
reset immediately after the overtemperature condition
ceases.
Handling SMBALERT Interrupts
To prevent the system from being tied up servicing
interrupts, it is recommend to handle the SMBALERT
interrupt as follows:
1. Detect the SMBALERT assertion.
2. Enter the interrupt handler.
3. Read the status registers to identify the interrupt
source.
4. Mask the interrupt source by setting the
appropriate mask bit in the interrupt mask registers
(0x74 and 0x75).
0
12 V/VC
1 indicates a 12 V high or low limit has
been exceeded. If the VID code change
function is used, this bit indicates a
change in VID code on the VID0 to
VID4 inputs.
5. Take the appropriate action for a given interrupt
source.
6. Exit the interrupt handler.
7. Periodically poll the status registers. If the
SMBALERT Interrupt Behavior
The ADT7476 can be polled for status, or an SMBALERT
interrupt can be generated for out-of-limit conditions. It is
important to note how the SMBALERT output and status
bits behave when writing interrupt handler software.
interrupt status bit has cleared, reset the
corresponding interrupt mask bit to 0. This causes
the SMBALERT output and status bits to behave
as shown in Figure 30.
HIGH LIMIT
HIGH LIMIT
TEMPERATURE
TEMPERATURE
CLEARED ON READ
“STICKY”
(TEMP BELOW LIMIT)
“STICKY”
STATUS BIT
SMBALERT
TEMP BACK IN LIMIT
(STATUS BIT STAYS SET)
CLEARED ON READ
(TEMP BELOW LIMIT)
STATUS BIT
SMBALERT
TEMP BACK IN LIMIT
(STATUS BIT STAYS SET)
INTERRUPT
MASK BIT SET
INTERRUPT MASK BIT

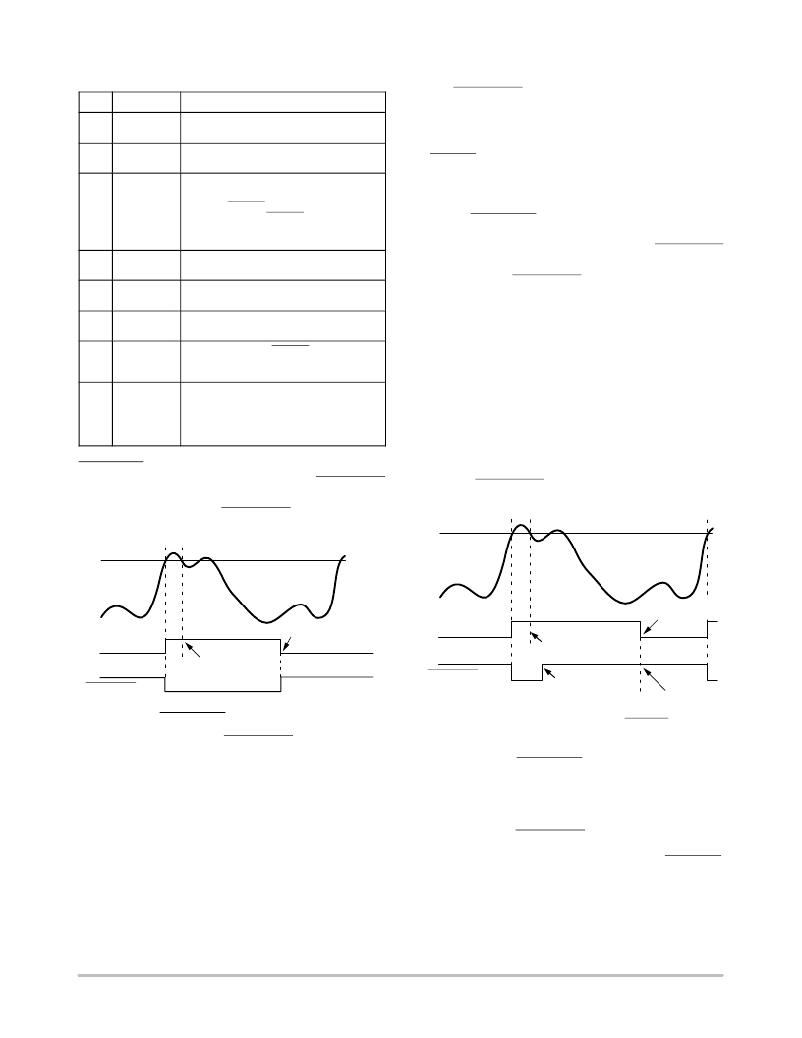

Figure 29. SMBALERT and Status Bit Behavior
Figure 29 shows how the SMBALERT output and sticky
status bits behave. Once a limit is exceeded, the
corresponding status bit is set to 1. The status bit remains set
until the error condition subsides and the status register is
read. The status bits are referred to as sticky because they
remain set until read by software. This ensures that an
out-of-limit event cannot be missed if the software is
periodically polling the device.
CLEARED
(SMBALERT RE-ARMED)
Figure 30. How Masking the Interrupt Source Affects
SMBALERT Output
Masking Interrupt Sources
Interrupt Mask Register 1 (0x74) and Interrupt Mask
Register 2 (0x75) allow individual interrupt sources to be
masked to prevent SMBALERT interrupts.
NOTE: Masking an interrupt source prevents only the SMBALERT
output from being asserted; the appropriate status bit is set
normally.
http://onsemi.com
21
